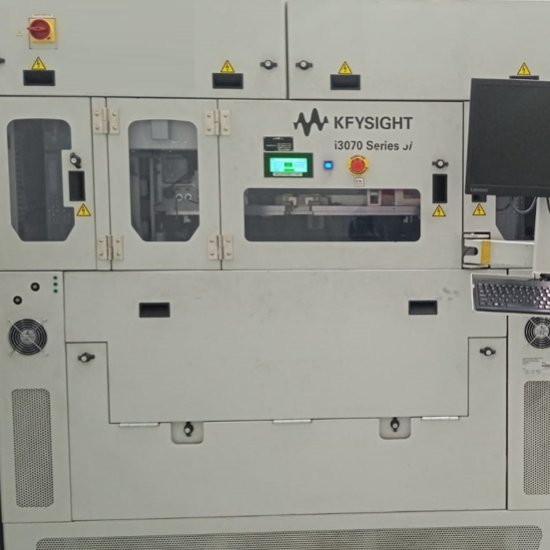

2018 Keysight Technologies E9986E In-Line In-Circuit Test System

Make: Keysight Technologies

Model:  E9986E i337X

Vintage:  2018

Description:  In-Line, In-Circuit Test System

Details:

4-Module Inline Tester

Configuration:

line frequency 60

relay 4 controls vacuum 0
relay 3 controls vacuum 1
relay 2 controls vacuum 2
relay 1 controls vacuum 3

switch high speed link 1

Bank 1 – Module 0

      cards 1 asru n revision
      cards 2 hybrid advanced double density
      cards 3 hybrid advanced double density
      cards 4 hybrid advanced double density
      cards 5 hybrid advanced double density
      cards 6 control xtpa 64
      cards 7 hybrid advanced double density
      cards 8 hybrid advanced double density
      cards 9 hybrid advanced double density
      cards 10 hybrid advanced double density
      cards 11 hybrid advanced double density
      supplies ps6751 13 to 16 asru channels 1 to 4

Bank 1 – Module 1
      cards 1 asru n revision
      cards 2 hybrid advanced double density
      cards 3 hybrid advanced double density
      cards 4 hybrid advanced double density
      cards 5 hybrid advanced double density
      cards 6 control xtpa 64
      cards 7 hybrid advanced double density
      cards 8 hybrid advanced double density
      cards 9 hybrid advanced double density
      cards 10 hybrid advanced double density
      cards 11 hybrid advanced double density
      supplies ps6751 9 to 12 asru channels 1 to 4

Bank 2 – Module 2

cards 1 asru n revision
      cards 2 hybrid advanced double density
      cards 3 hybrid advanced double density
      cards 4 hybrid advanced double density
      cards 5 hybrid advanced double density
      cards 6 control xtpa 64
      cards 7 hybrid advanced double density
      cards 8 hybrid advanced double density
      cards 9 hybrid advanced double density
      cards 10 hybrid advanced double density
      cards 11 hybrid advanced double density
      supplies ps6751 5 to 8 asru channels 1 to 4

 Bank 2 – Module 3
      probe
      debug port
      cards 1 asru n revision
      cards 2 hybrid advanced double density
      cards 3 hybrid advanced double density
      cards 4 hybrid advanced double density
      cards 5 hybrid advanced double density
      cards 6 control xtpa 64
      cards 7 hybrid advanced double density
      cards 8 hybrid advanced double density
      cards 9 hybrid advanced double density
      cards 10 hybrid advanced double density
      cards 11 hybrid advanced double density
      supplies ps6751 1 to 4 asru channels 1 to 4

Condition:  Complete & Operational

Location and Shipping:  USA / FOB Origin

Availability:  Immediate for purchase / 3-5 Weeks for Shipping
